Create a Display

Updated

Creating a Display allows you to manage multiple locations where you can showcase visualizations on physical screens, whether you're creating temporary Displays for events or managing a full-time Display of social activity in your store or front office.

Sprinklr Display makes it easy to set up and manage Displays, so you can be confident in the content that you're showing on-screen.

To Create a Display

  1. Click the New Tab icon Space Add New Tab Icon. Under the Sprinklr Social tab, click Display within Analyze.

  2. In the top left corner of the Display window, click the Display tab.

  3. On the Display tab window, click Create in the top right corner to begin creating a new Display.

  4. Select either of the options for your display:

Single Display

Display Wall

Intended for single-screen Displays. Any Storyboard with any wall configuration can be assigned and displayed via a single Display URL.

Intended for Displays that use multiple screens. When you select the Screen Layout, you must choose a screen layout option that has the same number of panels that your Storyboards have. For more information, see Screen Layout Details.

For example, while assigning a storyboard to your display, you can only select a Screen Layout that has 6 panels. Any Screen Layout with more or less than 6 panels will not be able to be selected for a 6-panel storyboard.

  1. On the Create New Display window, enter a name for your display in the Display Name field.

  2. Select a Display Type from the drop-down. It can be used to monitor and prioritize your displays. You can easily differentiate between multiple displays depending on their uses. Following are the display types you can select from:

    • Command Center

    • Lobby

    • Live Event

    • Retail

    • DooH

  1. Provide an optional Address for your new Display within the given address fields. Click Next in the bottom right corner.

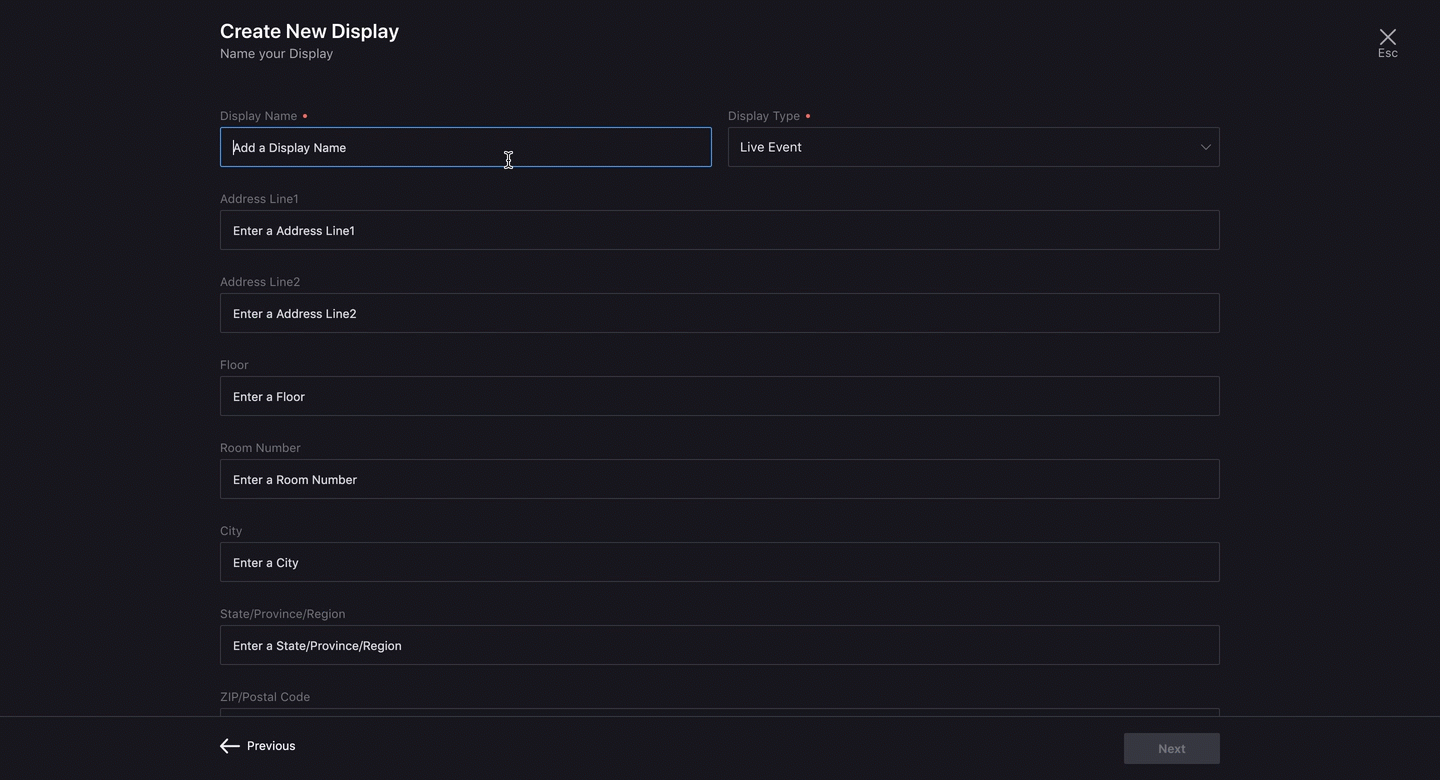

    Creating New Display within Modern Engagement Display

  2. Next, select a Screen Layout for your Display. You will be redirected to the Display tab window, where you can view your newly created display.

Screen Layout Details

Name
Dimensions
Screen Count
Panel Count
Two Up

2x1

2

2

Double Stack

1x2

2

2

Triple Stack

1x3

3

3

Triptic

3x1

3

3

4 Up

2x2

4

4

3X2

3x2

6

6

4X2

4x2

8

8

Tiefighter

N/A

6

6

3X3

3x3

9

9

3X4

4x3

12

12

6X1 Vertical

6x1

6

6

7X1 Vertical

7x1

7

7

3X1 Vertical

3x1

3

3

8X1 Vertical

8x1

8

8

4x1

4x1

4

4

Dual - Portrait

2x1

2

2

5x2

5x2

10

10

4x4

4x4

16

16

5x1

5x1

5

5

8x2

8x2

16

16

6x2

6x2

12

12

5x1

N/A

5

5

Mixed Two Up

2x1

2

2

7x1

7x1

7

7

9x1 Vertical

9x1

9

9

5x3

5x3

15

15

8x1

8x1

8

8

12x1

12x1

12

12

6x1

6x1

6

6

4x1 Vertical

4x1

4

4

X Wing

N/A

5

5

  1. Once the display is created, then you can assign a Storyboard to the Display.
