1. Overview & Fundamentals

Citrix Media Offloading is a technology used to optimize real-time audio and video in virtualized environments. Instead of routing all media streams through the virtual desktop or application server, the media is processed directly on the endpoint device and sent directly to the conferencing service. This reduces latency, improves call quality, and lowers CPU/network usage on the data center servers.

Successful deployment of media offloading relies on:

• Citrix Workspace App (CWA) version

• VDA version

• UDP/DTLS network connectivity (e.g., influenced by VPNs or firewall rules)

2. Citrix Media Offloading Architecture and Flow

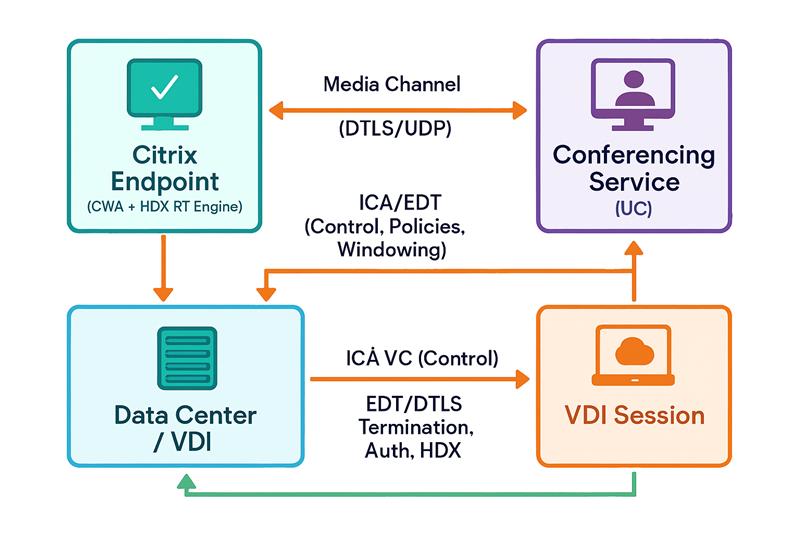

This diagram shows how audio/video (A/V) and control traffic flow between the components in a Citrix virtual desktop infrastructure (VDI) environment with unified communications (UC) optimization:

• Endpoint (CWA + HDX RT Engine): This is the user device running Citrix Workspace App, capturing and encoding audio and video.

• Conferencing Service (UC): Represents the external UC platform (e.g., Teams, Zoom) responsible for receiving and sending media streams. It may use STUN/TURN servers for peer-to-peer connection establishment.

• Direct Media Path: Media streams (audio/video) travel directly between the Endpoint and the Conferencing Service using DTLS/UDP, bypassing the data center for optimized performance.

• Data Center / VDI: Hosts the virtual desktop sessions where business applications run. The VDI session communicates with the endpoint using ICA/EDT channels for control, policies, and window management.

• Citrix Gateway: Manages secure access, authentication, and HDX proxying.



2.1 Citrix Call/Media Sequence Flow

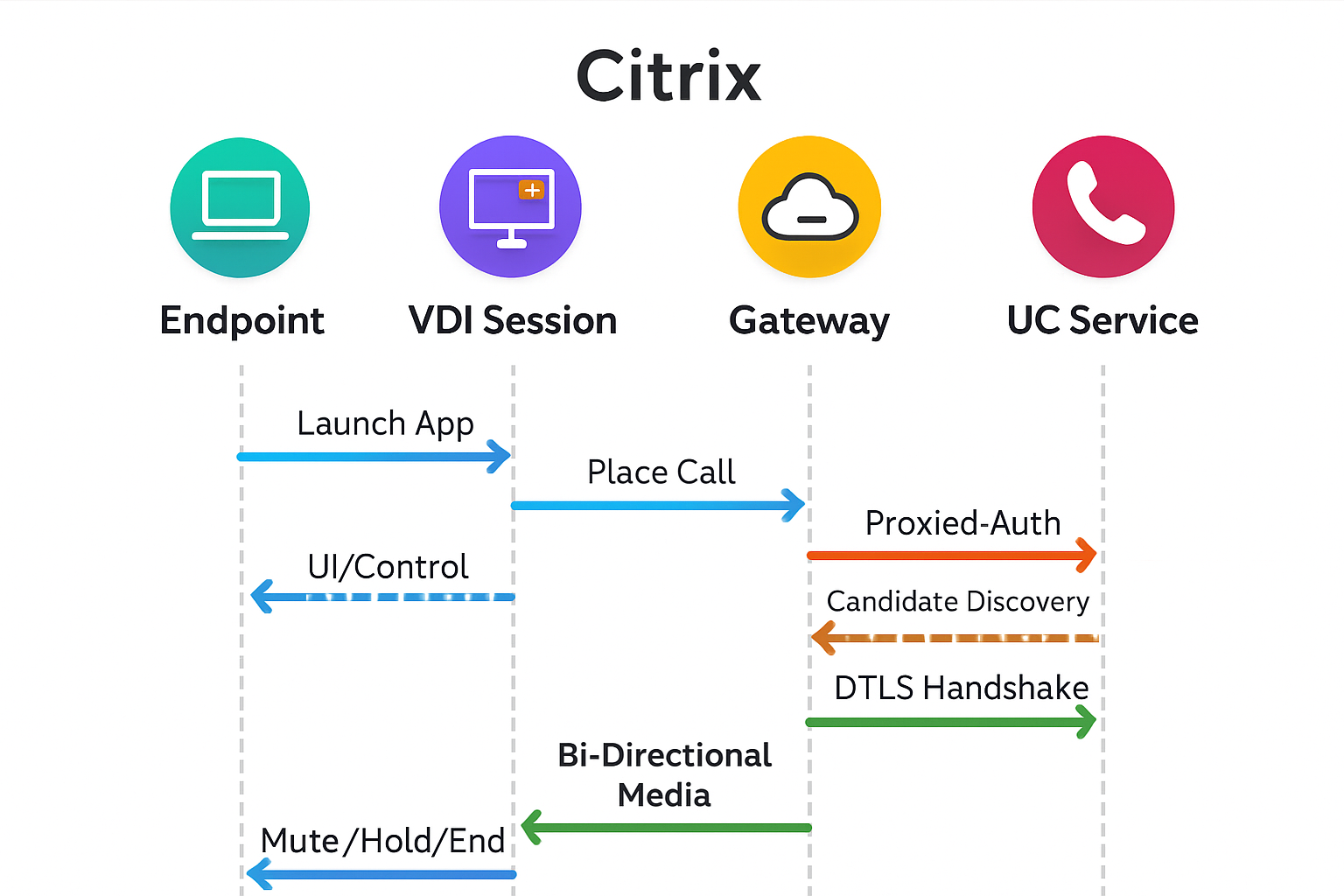

This sequence diagram illustrates each step in the call setup and media flow between the four main components:

• Endpoint: Initiates app launch, user interface interactions, and media actions.

• VDI Session: The virtual desktop session that handles UI, signaling, and control via ICA/EDT or ICA VC channels.

• Gateway: Manages authentication and session proxying when necessary.

• UC Service: The cloud conferencing platform.

The numbered steps show:

1. Endpoint launches the application.

2. UI/control information exchanges between Endpoint and VDI (ICA/EDT).

3. Endpoint initiates a call setup; signaling/control handled with UC via the VDI session (using ICA VC).
   4-5. If necessary, authentication or proxy setup occurs via the Gateway.
   6-8. Endpoint discovers media candidates (STUN/TURN), then completes DTLS handshake for establishing secure SRTP keys and finally sets up bi-directional encrypted media streaming (audio/video).

4. Endpoint controls media features (mute, hold, end) with commands sent to the VDI session.

   ​

Benefits of This Flow

• Reduced CPU usage on VDI servers.

• Lower network bandwidth requirements in the data center.

• Improved audio and video quality due to reduced latency.

• Better scalability for organizations hosting multiple real-time communication sessions.

3. Prerequisites

Deploying Citrix Media Offloading with DTLS requires coordinated configuration across the Citrix Workspace App (CWA), Virtual Delivery Agent (VDA), Citrix Gateway, and network infrastructure.

Combined CWA + VDA + DTLS Compatibility

Before beginning deployment, ensure the following:

Citrix Workspace App (CWA)

• Installed on endpoints (Windows/macOS/Linux)

• Meets or exceeds the version required for DTLS support:

  • Windows: 2402 LTSR+

  • macOS: 2503 CR+

  • Linux: 2402 LTSR+

• DTLS/UDP allowed through local firewall

Virtual Delivery Agent (VDA)

• VDA version is 2203 LTSR CUx or aligned with the CWA release

• HDX Adaptive Transport is enabled

• DTLS handshake supported

Citrix Gateway / NetScaler

• DTLS and UDP support enabled

• Appropriate SSL certificates configured

• Gateway vServer configured for HDX Insight and EDT

Network & VPN

• UDP ports open: Typically 443 or 1494/2598 for EDT

• Split tunneling enabled if using VPN

• Firewalls allow UDP/DTLS traffic from endpoints to Gateway/VDA

• Ensure WAN optimizers or proxies don’t interfere with UDP streams

Operating System / Dependencies

• macOS: Ensure compatibility with UC SDK/WebRTC for DTLS

• Linux: Install OpenSSL packages if required for DTLS handshake

4. Deployment Steps

The following steps outline a typical deployment flow for production environments.

Step 1: Prepare the VDA

1. Install or upgrade to Citrix VDA 2203 LTSR CUx or compatible CR version.

2. Verify HDX Adaptive Transport is enabled in Citrix policy:

   • HDX Transport Protocol: Preferred

   • HDX Adaptive Transport: Enabled

3. Confirm UDP listener is active (use netstat -an | find "UDP" or equivalent).

Step 2: Configure Citrix Gateway

1. Log in to Citrix ADC / NetScaler.

2. Enable DTLS on the Gateway virtual server:

   • Bind valid SSL certificate.

   • Enable UDP-based EDT over DTLS.

3. Validate external firewall rules allow UDP traffic (e.g., 443/1494/2598).

Step 3: Install and Configure CWA

1. Install the latest supported version of Citrix Workspace App per platform.

2. Enable DTLS support in registry (Windows) or config file (Linux/macOS), if required:

   • Windows:

     [HKEY_LOCAL_MACHINE\SOFTWARE\Citrix\HDXMediaStream]

     "EnableDTLS"=dword:00000001

3. Validate UDP handshake using Citrix Diagnostic Tool or Wireshark (udp.port == 443).

4. Ensure anti-virus or local firewall does not block DTLS/UDP.

Step 4: Validate Connectivity

1. Launch a session from the endpoint to a VDA.

2. Confirm connection type using Citrix Director:

   • Look for Connection Mode: EDT (UDP) or EDT (DTLS)

3. Optionally validate with CtxSession.exe (Windows endpoint) or logs on Linux/macOS.

4. Test call or meeting to validate audio/video quality and offloading behavior.

5. Post-Deployment Monitoring

• Use Citrix Director to monitor transport protocol usage, bandwidth, and session health.

• Analyze packet traces for DTLS handshakes and fallback events.

• Monitor VPN statistics and ensure split tunneling is working as expected.

• Use Citrix ADM or NetScaler logs to observe UDP load on the Gateway.

6. VDA Version Best Practices

• Minimum requirement for DTLS: VDA 7.16 (with EDT support).

• Production recommendation: Use VDA 2203 LTSR CUx or later, or ensure VDA matches the CWA CR track for the best DTLS compatibility.

• Mismatched CWA/VDA DTLS maturity can cause handshake failures or fallback to TCP media transport.

7. VPN Impact & Best Practices

VPN configurations that encapsulate traffic in TCP tunnels may inhibit UDP/DTLS connectivity—forcing media fallback to TCP/TLS and degrading performance (increased latency and jitter).

Recommendation:

• Use split tunneling to allow UDP/DTLS traffic to reach the Citrix Gateway or VDA directly.

• Always validate that your VPN supports UDP/DTLS before enabling media offloading in production.

8. Upgrade & Deployment Recommendations

• Avoid running unsupported versions: Upgrade any CR components older than 18 months.

• Align versions: Keep CWA and VDA on similar release tracks (LTSR or CR) for maximum DTLS compatibility.

• Platform-specific guidance:

  • Windows: Use 2402 LTSR or newer.

  • macOS: Wait until 2503 CR or newer before deploying DTLS in production.

  • Linux: Use 2402 LTSR or newer for reliable DTLS

9. Troubleshooting Tips

Summary

For deployment-ready DTLS support and media‑offloading optimization in Citrix environments:

• Use 2402 LTSR+ for Windows and Linux, and 2503 CR+ for macOS.

• Align CWA and VDA versions based on platform requirements.

• Ensure Citrix Gateway is correctly configured to support DTLS.

• Match your VDA versions appropriately (2203 LTSR CUx or aligned CR).

• Ensure UDP/DTLS connectivity (VPN split tunneling recommended).

• Confirm UDP/DTLS path is available end-to-end.

• Stay on supported, current releases only, and avoid production use of outdated components.
