Session Screen Manager

Updated

You have the capability to manage anonymous user session expirations, including configuring the session expiry screen, setting the inactivity duration before a session expires, and customizing alert screens.

There are 2 types of sessions -

  • Time Based

  • Rule Based

Time-based session

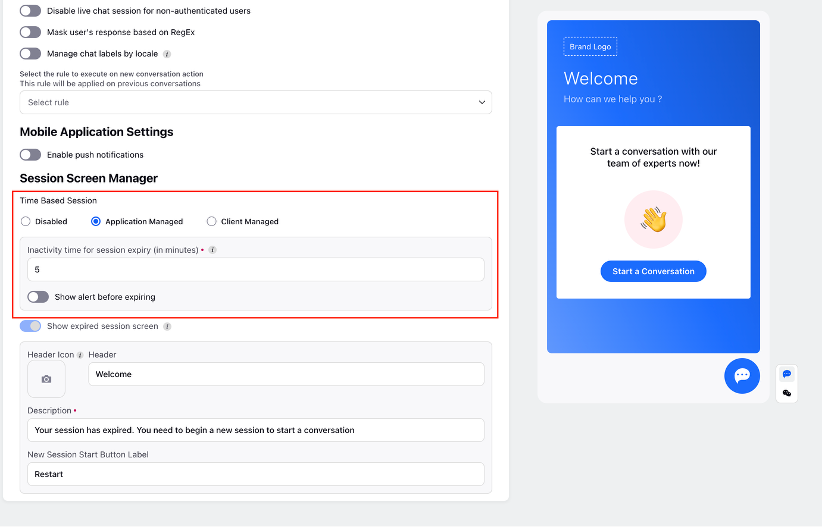

  • Application Managed:

Application-managed session lets the live chat application handle the expiration of the session without the dependency of the client or the user to manually terminate a session. The application closes the session based on the time-based inactivity of the user exhibited during the live chat session.



You can set a pre-defined inactivity time of the user in minutes post which the session expires automatically.

You can also configure the alert before the session expires to notify the user of the upcoming session's expiry.

Sno.

Element

Description

Inactivity Time for session expiry field

Input field to decide after how many minutes of user inactivity on live chat, should the session expire

Show alert before expiring

Enables or disables the alerts to be shown to user before session expiration

Time left to session expiry

Input field to plan how many seconds before session expiry should the user see the alert

Alert Title

Name of alert to be shown to the end user

Alert Description

Add a description of the alert to inform the user of the session's expiry due to inactivity.

Continue Session Label

Label for button in case the user wishes to continue the session

End Session Label

Label for button in case the user wishes to terminate the session

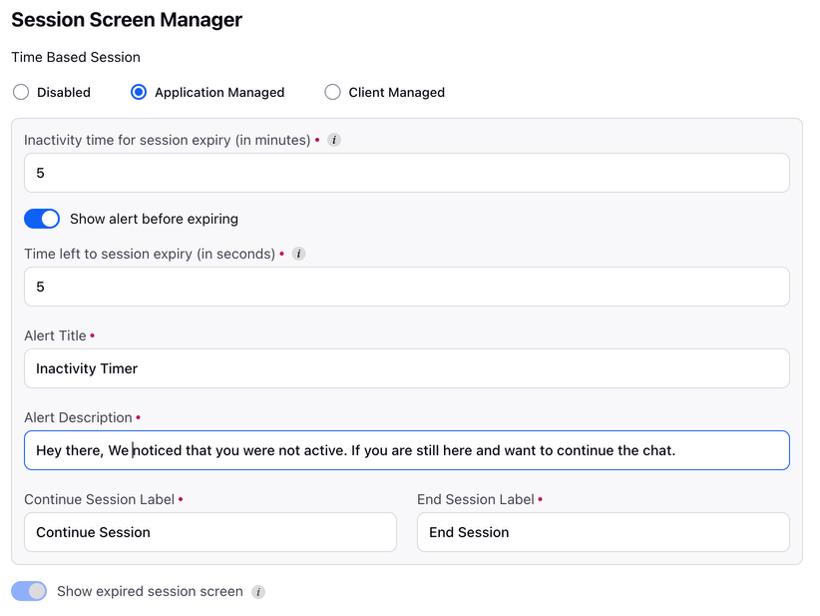

You can customize the duration (in seconds) for which the alert would be visible on screen; you can also set an alert title and description with two Call to Action buttons to end or continue the ongoing session.

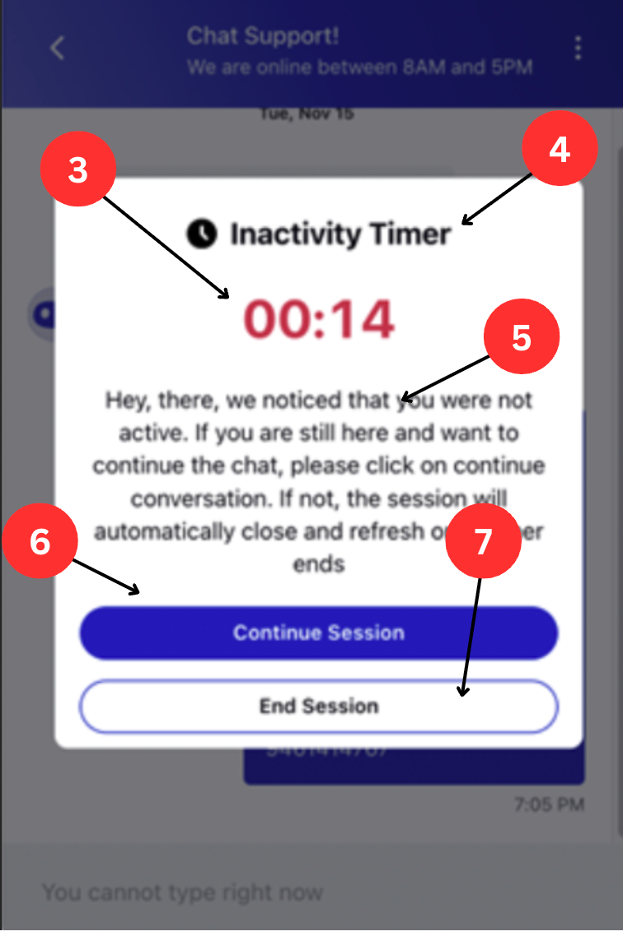

Inactivity Alert Screen:

This is an example of how the inactive screen alert could look like:

If the user clicks on the ‘Continue Session’ the session will continue, and the session inactivity timer will disappear.

Upon clicking the ‘End Session' the session will end, and the user will go back to the home screen of the Live Chat and a new session will be created.

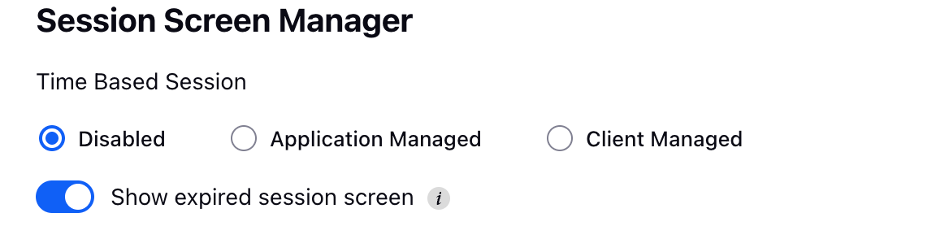

The default Time Based Session is set to Disabled as shown below:

  • Client Managed

Once it is enabled, continuous user session activity is captured on the browser, providing a reliable source to track and manage user sessions. For instance, if you intend to take specific actions on your website based on live chat user activity (such as sending messages, initiating new conversations, or navigating from the home page to the conversation page), you can enable this feature and monitor user sessions by utilizing the following SDK code:

window.sprChat('subscribeToUpdate', {

  topic:'eventTriggered',

  subscriber: payload => {if(payload.response.data.eventType==='SESSION_ACTIVE')console.warn('Event',payload)},

});

Expired Session Screen

Expired session screen is shown due to time based or rule-based expiry. This helps in informing the user that the present session has ended and gives them the option to restart another session.

It's a mandatory requirement for an application managed session but optional in case the time-based session is Disabled or is Client Managed.

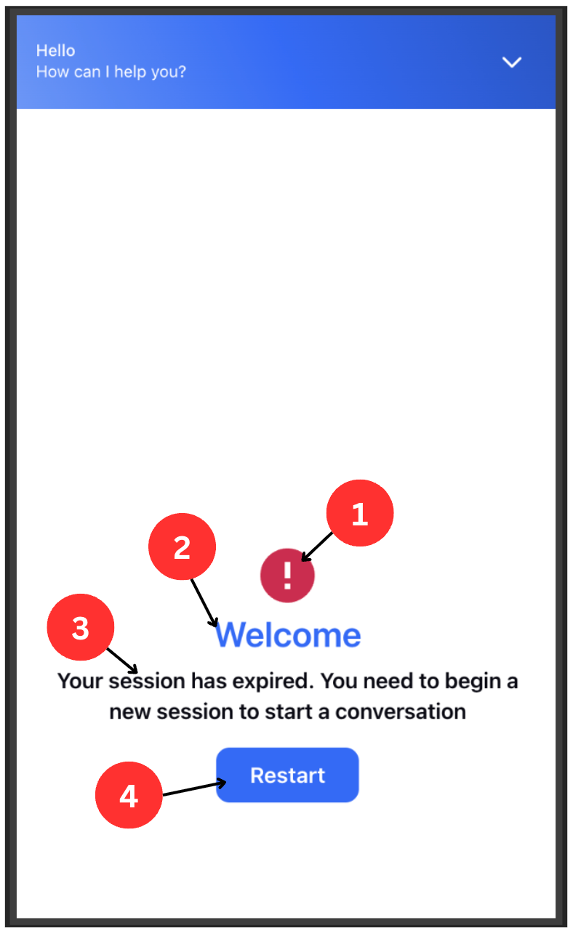

Expired Session Screen

This is an example of how the expired session screen could look like.

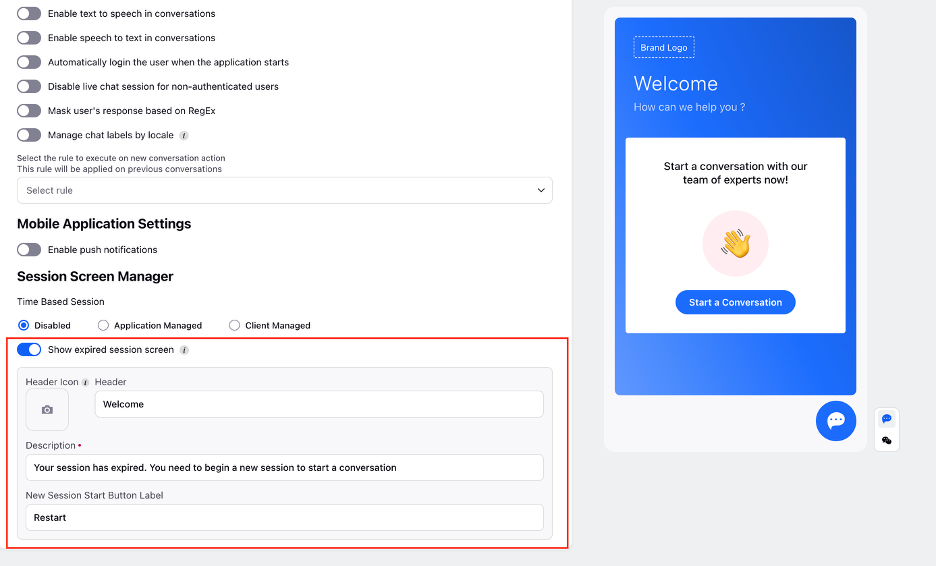

You can customize the expired session screen via the header icon image, header titles, description, and the label of a CTA button to restart another session.

Sno.

Element

Description

Header icon

To add a header icon by uploading or adding an image from the Digital Asset Manager

Header

To add a header title

Header Description

Description of the expired session screen

New Session Start Button Label

Button label for expired session screen upon clicking the user can initiate a new session

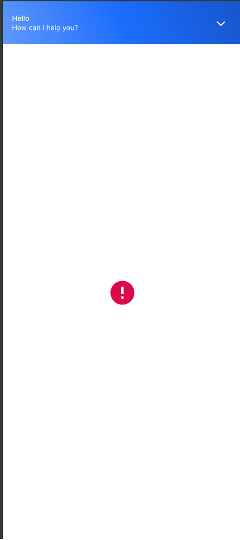

In case the expired session screen is not enabled this is how the screen would look like upon session expiration:
